Centrix™ - Extreme flexibility and simplicity by varous cabinets and management frames

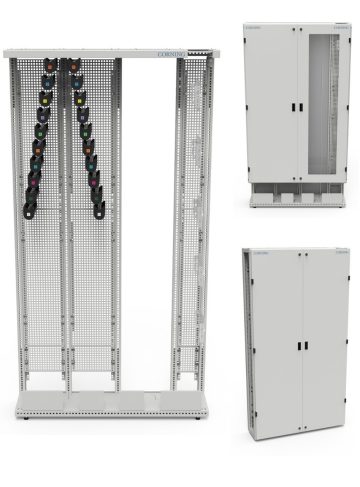

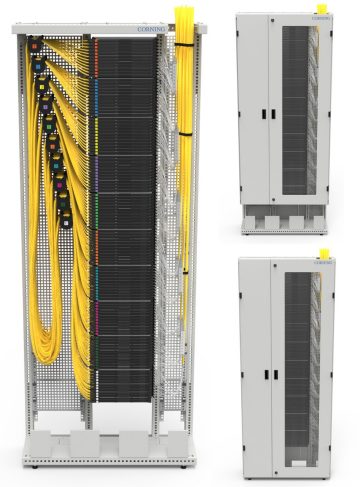

Front Access Single Cabinet

Front Access Single Cabinet

Application

• The single cabinet enables flexible cross connect options in point of presents rooms with limited space and adopts with 40 RU up to 120 Centrix cassettes.

Density

• LC: 4,320 l SC: 2,880 l LSH: 1,440

Dimensions

• H x W x D: 2200 mm x 900 mm x 300 mm

Patch cord and Cable Management

• 10 cable management hubs
• Gravity loop with only 4 m patch cords inside the cabinet
• Bottom channel for additional patch cord routing options
• Feeder cables can enter the cabinet from top and bottom

Cabinet Options

• Option 1: Minimal protection for controlled areas
• Option 2: Protection with a bottom channel to enable connections across cabinets
• Option 3: Full protection to prevent unauthorized access

Single Cabinet Splice Concentrator

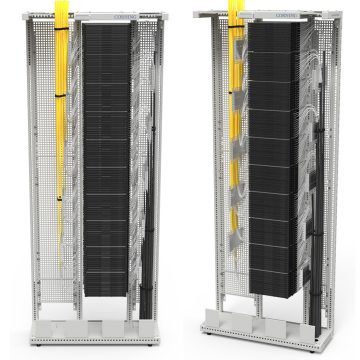

Single Cabinet Splice Concentrator

Application

• The single cabinet enables high density splicing in areas with limited space and adopts with 40 RU up to 120 Centrix splice through cassettes.

Splice Capacity

• 4,320 Fibers

Dimensions

• H x W x D: 2200 mm x 900 mm x 300 mm

Patch cord and Cable Management

• Cable entry from top or bottom
• 10 cable mounting plates

Single Cabinet as an Equipment Interconnect

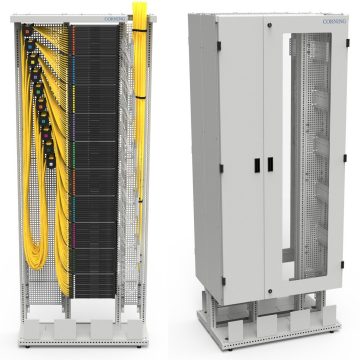

Single Cabinet as an Equipment Interconnect

Application

• The single cabinet (1200 wide) provides dual patch cord management enables in-cabinet Cross-Connects and Interconnects to adjacent equipment
• The cabinet adopts with 40 RU up to 120 Centrix cassettes

Density

• LC: 4,320 l SC: 2,880 l LSH: 1,440

Dimensions

• H x W x D: 2200 mm x 1200 mm x 300 mm

Patch cord and Cable Management

• Bottom patch cord troughs for additional patch cord routing options
• 20 cable management hubs
• Gravity patch cord loop
• Feeder cables can enter the cabinet from top and bottom

Cabinet Options

• Option 1: Minimal protection for controlled areas
• Option 2: Protection with a bottom channel for connections across cabinets
• Option 3: Full protection to prevent unauthorized access

Front Access Dual (Back-to-Back) Cabinets

Front Access Dual (Back-to-Back) Cabinets

Application

• The Centrix dual cabinet (back-to-back) provides space for 80 RU and adopts up to 240 Centrix cassettes. The patch cord management enables in-cabinet Cross-Connects with a single patch chord length of 4 m.

Density

• LC: 8,640 l SC: 5,760 l LSH: 2,880

Dimensions

• H x W x D: 2200 mm x 900 mm x 600 mm

Patch cord and Cable Management

• Right and left side cable entry
• Bottom patch cord troughs for additional patch cord routing options
• 20 cable management hubs
• Gravity patch cord loops
• Feeder cables can enter the cabinet from top and bottom.

Cabinet Options

• Option 1: Minimal protection for controlled areas
• Option 2: Protection with a bottom channel to enable easy routing path across cabinets in a row

Front Access Dual (Side-by-Side) Cabinets

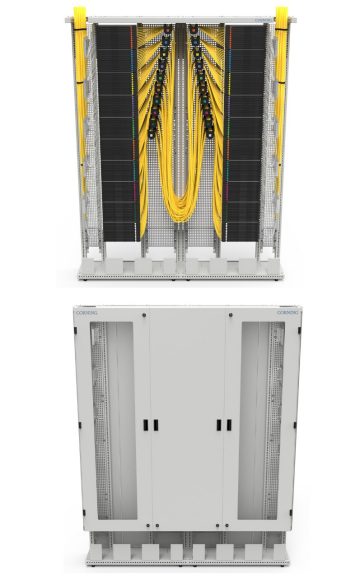

Front Access Dual (Side-by-Side) Cabinets

Application

• The Centrix dual cabinet (side-by-side) provides space for 80 RU and adopts up to 240 Centrix cassettes. The patch cord management enables in-cabinet Cross-Connects with a single patch chord length of 4 m
• The bottom channel function provides for easy routing of patch cords across cabinets in a row

Density

• LC: 8,640 l SC: 5,760 l LSH: 2,880

Dimensions

• H x W x D: 2200 mm x 1800 mm x 300 mm

Patch cord and Cable Management

• 20 cable management hubs
• Gravity patch cord loops
• Feeder cables can enter the cabinet from top and bottom

Cabinet Options

• Option 1: Minimal protection for controlled areas
• Option 2: Protection with a bottom channel

Quad Cabinets

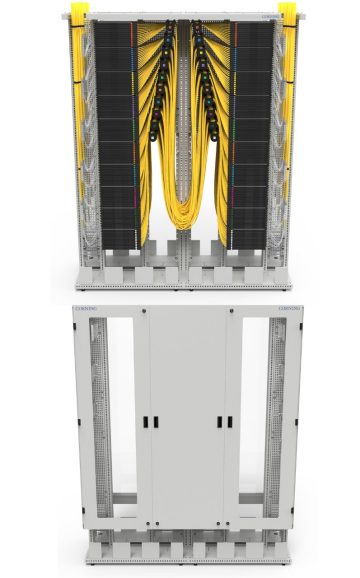

Quad Cabinets

Application

• The Centrix quad cabinet (back-to-back) provides space for 160 RU and adopts up to 480 Centrix cassettes. The patch cord management enables in-cabinet Cross-Connects with a single patch chord length of 4 m. The bottom channel function provides for easy routing of patch cords across cabinets in a row.

Density

• LC: 17,280 l SC: 11,520 l LSH: 5,760

Dimensions

• H x W x D: 2200 mm x 1800 mm x 600 mm

Patch cord and Cable Management

• 40 cable management hubs
• Gravity patch cord loops
• Feeder cables can enter the cabinet from top and bottom

Cabinet Options

• Option 1: Minimal protection for controlled areas
• Option 2: Protection with a bottom channel

Overlength Management Frame

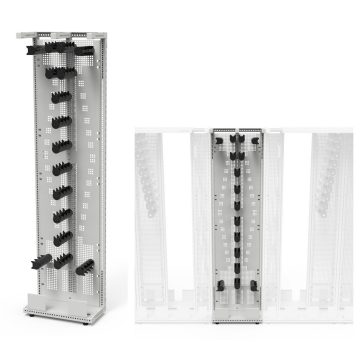

Overlength Management Frame

Application

• The Overlength Management frame provides patch cord routing features to manage up to 4 m of patch cord slack. It also provides transitioning from the bottom channel of a row of cabinets into an overhead bridge to an adjacent row.

Dimensions

• H x W x D: 2200 mm x 600 mm x 300 mm

Patch cord and Cable Management

• 20 cable management hubs
• Bottom channel routing
• To overhead cable routing
• Overlength storage
