Corning Intelligent Power (CIP) and Power Supply Units (PSU) | Corning

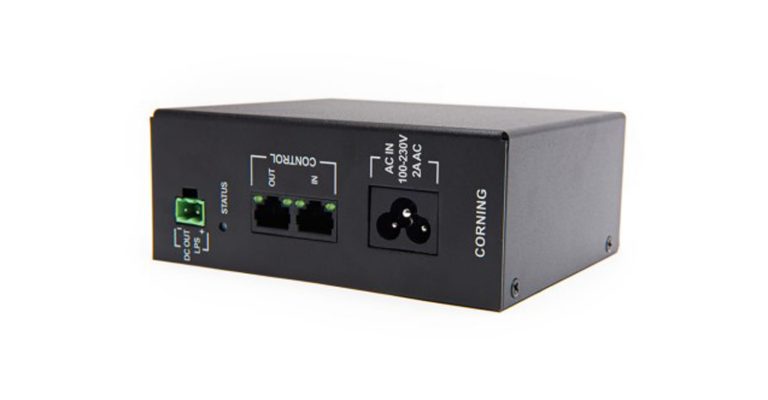

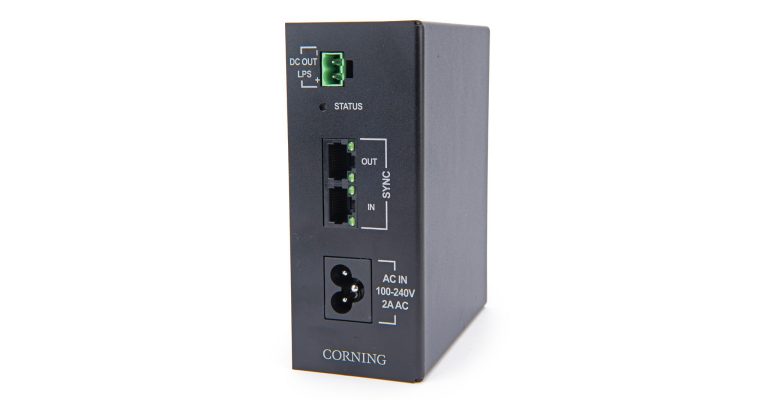

The Everon® CIP-01-56V stands out with its versatility and power control capabilities. It provides a National Electrical Code® (NEC®) Class-2 LPS 56V output, allowing for various output power characteristics achieved via connectivity to external step-down converter units. With the ability to reduce voltage from 56V to 24V and support up to 95W loads, this power supply unit offers unmatched flexibility. The outputs can be aggregated to provide higher power at the network edge.

The CIP-01-56V is designed to empower a wide range of applications, including LAN switches, GPON ONTs, Distributed Antenna Systems, LED Lighting, and Security/Access Control. Its high efficiency, wide AC input range, and built-in monitoring and control features make it an ideal choice for projects requiring reliable and adaptable power solutions.

The CIP-01-56V is designed with energy efficiency in mind. Ensuring minimal energy waste, the CIP-01-56V boasts a significant power factor at 230 VAC at full load. Additionally, with an efficiency rating of up to 92%, it reduces energy consumption, lowers operating costs, and minimizes environmental impact. By efficiently delivering power where it's needed, this power supply unit aligns with sustainability goals and contributes to a greener future.

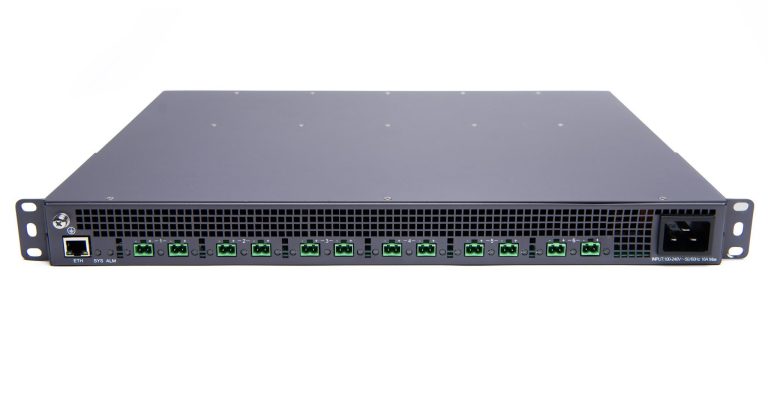

The Corning PSU-C-06 is a high-efficiency, carrier-grade DC power supply solution designed to support mission-critical network infrastructure and in-building LAN deployments requiring reliable and scalable power delivery.

The PSU-C-06 delivers up to 1,200 W of total system output at 56 VDC, supporting high-density power requirements across connected devices.

The system supports up to six hot-swappable power modules, with each module delivering dual 56 VDC outputs. This modular architecture enables flexible expansion and scalable power delivery as network demands grow.

The PSU-C-06 supports a wide AC input voltage range of 85 to 265 VAC, enabling compatibility with global power environments.

The PSU-C-06 is designed for high performance, achieving high power factor and conversion efficiency, which helps reduce energy loss and improve overall system efficiency.

The PSU-C-06 includes an Ethernet interface that enables remote monitoring and management via Web-GUI or CLI, and supports SNMP for integration with network management systems

The system incorporates comprehensive protection mechanisms, including overvoltage, overcurrent, short-circuit, and overtemperature protection, along with real-time diagnostics and fault reporting for fast issue identification.

The PSU-C-06 is designed to operate in temperatures ranging from -20°C to +55°C and supports non-condensing humidity levels from 5% to 95%, making it suitable for a wide range of deployment environments.

The PSU-C-06 is designed as a 1U, 19-inch rack-mount chassis, enabling easy integration into standard data center and network equipment racks.

The PSU-C-06 is designed to comply with IEC/EN/UL 62368-1 safety standards and includes regulatory compliance such as UK CA and CE certification.
