EDGE™ LC Lockable Uniboot Jumpers

Flexible yet strong, with high durability, good crush and pressure resistance

Flexible yet strong, with high durability, good crush and pressure resistance

Corning’s Armoured Patch Cords exhibit the same outstanding performance as the standard patch cords. The Armoured cable features an interlocked stainless steel tube taped over a buffered fibre, which is surrounded by a layer of aramid yarn and an outer jacket to better protect the cable. This provides protection in data centres and harsh environments.

The robust steel armor design can provide much higher compression, crush resistance, rodent resistance, and increased security, making it ideal for industrial and heavy traffic areas.

Features and Benefits

Product Applications: Product Specifications:
  • Local Area Networks, including fiber to the desktop (FTTD)
  • Telecommunication networks
  • Data processing networks
  • Automation and industrial environments / Smart Factories
  • Patch cord cable designed according to TIA 568.3-E standard
  • Maximum insertion loss is 0.25 dB for LC duplex and 0.5 dB for uniboot
  • Minimum return loss is 50 dB for single mode
  • Crush resistance 3,000 N/100 mm
  • Reverse polarity design allows for a quick-and-easy conversion of polarity in the field for uniboot patch cords

Want to learn more about Armoured Patch Cords?

Enter your contact info below and we'll have a representative reach out to you soon.

Contact Us

Quick Facts:

armored patch cord

Flexible yet strong, easy to install

Small bending radius with interlocking spring structure. Resists damage from improper twist.

Armored patchcords

Stainless steel tube inside the outer jacket

High durability, good crush and pressure resistance. Protects against rodents.

Armored patchcord

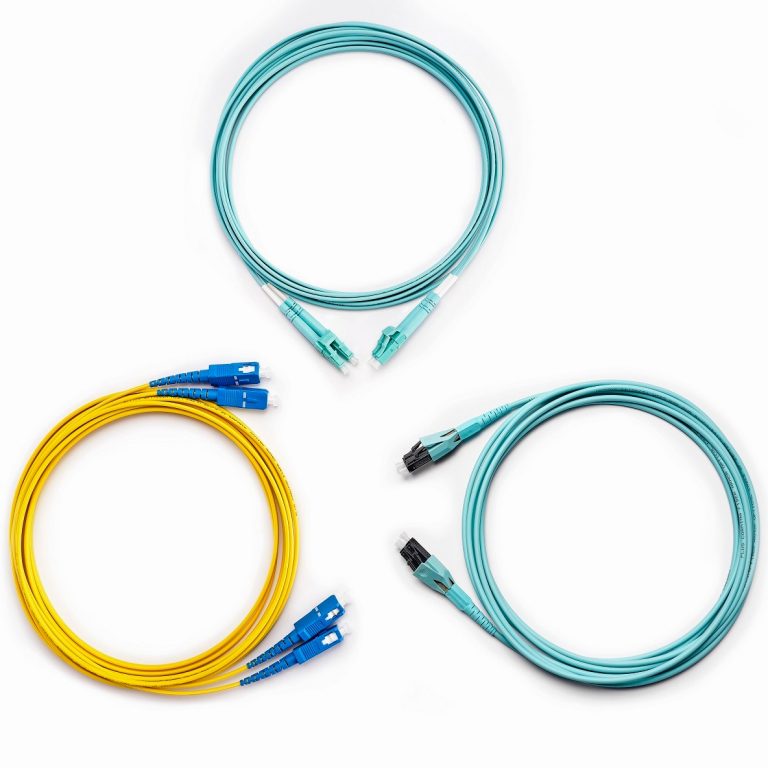

Different types of terminations: SC, LC connectors

Available in single-mode and multimode fiber. Available for 3.0 mm DFX® and 2*2.0 mm duplex cable structure.
